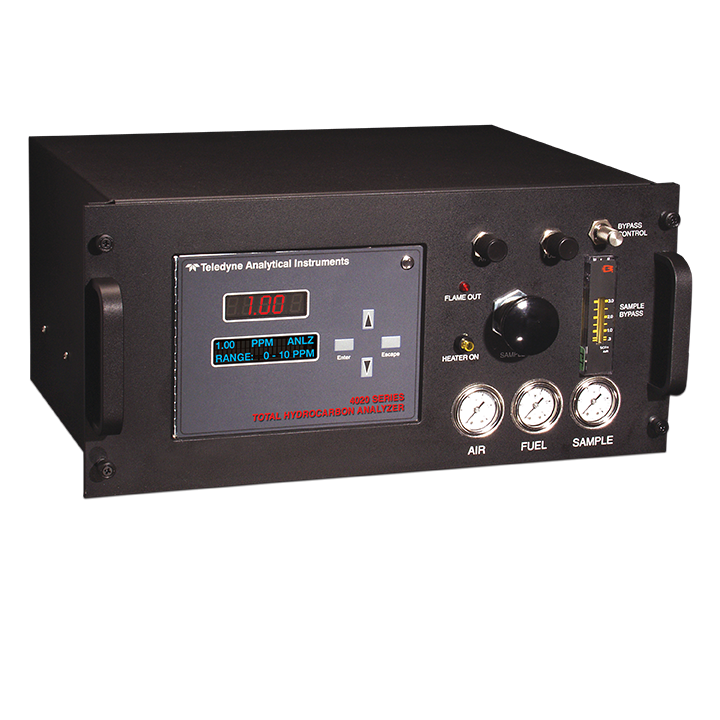

The Model 4020 uses a field-proven FID detector to measure THC in various streams. This instrument is ideal for monitoring hydrocarbon contamination in high purity bulk gases. When coupled with Teledyne’s unique separation column, the 4020 is also diverse enough to be applied in hazardous locations for detection of volatile hydrocarbons in cooling water for process leak detection and environmental compliance.


• Easy to use software, user programmable ranges
• GC technology used for complete separation of Methane, Ethylene Oxide, Benzene, Styrene, BTX and many other compounds (application dependent)
• Automatic fuel shut off system
• Electronic flame-out guard circuit
• Adjustable alarm and oven settings
• Fast response
• Sample filter with exchangeable stainless steel element
• Built-in sample pump (optional)
• Stainless steel sample system with flexible design to handle either a 100% H2, H2/N2 or H2/He support gas fuel mixture
• Automatic ignition
• X-purged configuration for hazardous area installations available
• Standard auto-calibration programming, ideal for unmanned plant conditions
• Enhanced temperature control of sample compartment for stable, reproducible results
• Easily accessible pressure and flow control devices
• Slide out chassis design for easy access to internal components
• CE marked
• Optional methanizer​ for CO and CO2 measurements
